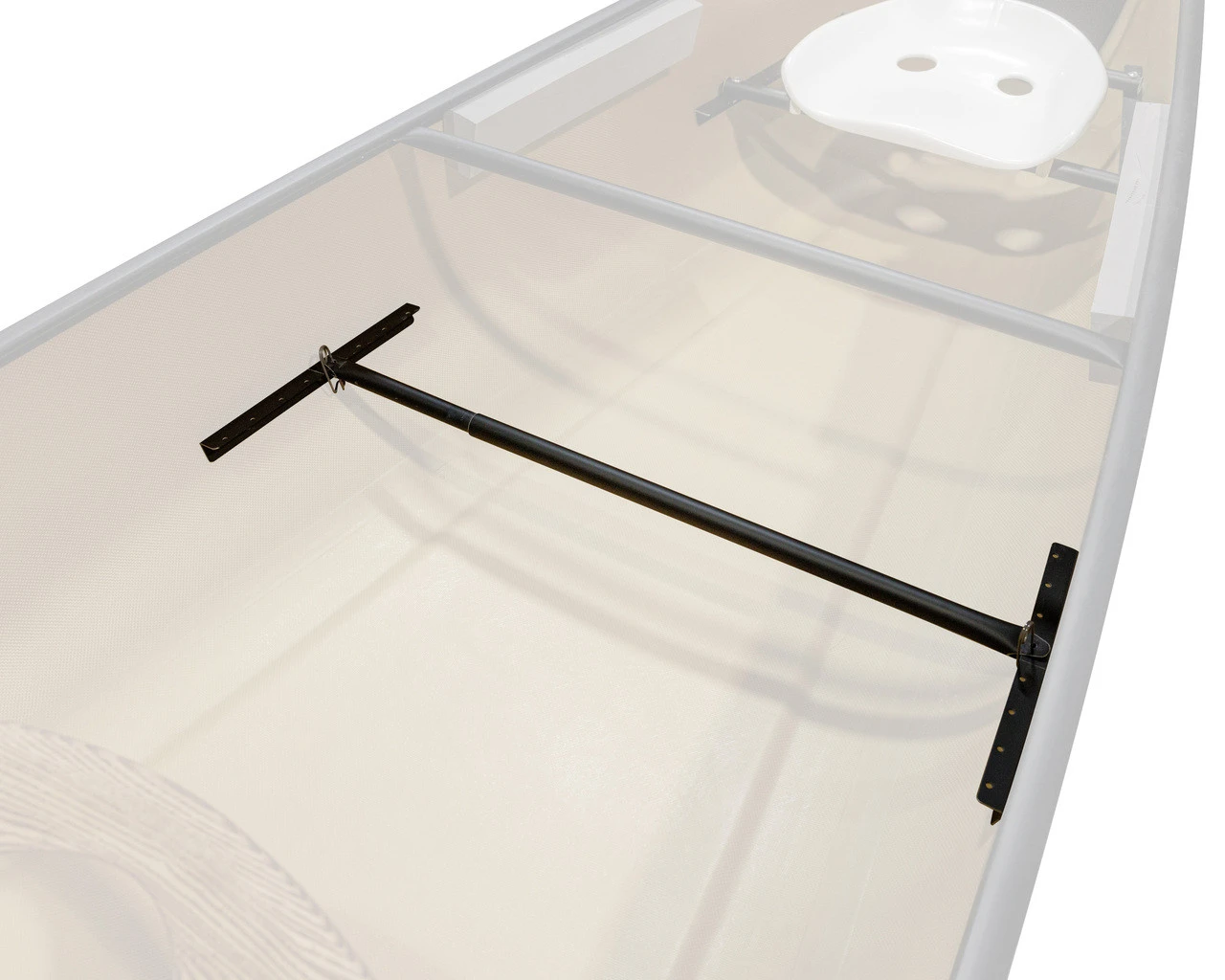

Footbrace Kitwith Hardware

Footbrace Kit with Hardware Description

This kit is easily added to any canoe to give the paddler extra leverage against their paddle stroke.

Also available with the bar only. *Pins sold separately with this option



Footbrace installation instruction



Kit Contents:

• • 1X Telescoping footbrace bar
  • 2X Footbrace Pins
  • 2X Side Angle Brackets
  • 6X Sealed Rivets

Tools Requires:

• • Drill with 3/16” (11#) Drill bit
  • Pop Rivet Gun
  • Tape Measure
  • Pencil

Instructions:

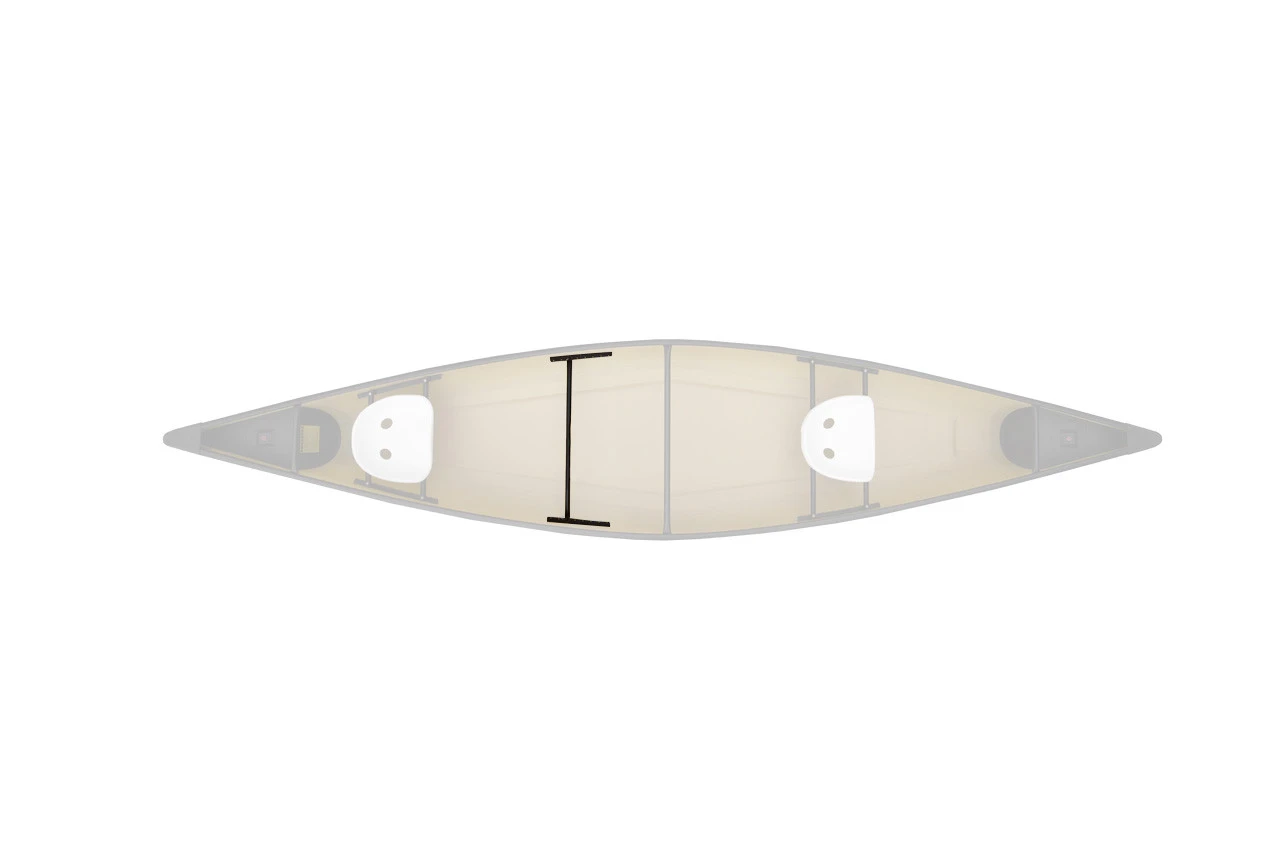

1. 1. Place Footbrace approximately 21” from the front of the stern seat angle. Measure 7” from the bottom of the canoe.
   2. With a pencil, trace the three holes of the side angle brackets, onto the side of the canoe.
   3. Pre-drill holes with 1/8” (11#) bit.
   4. Pop rivet angle on the sealed rivets. Repeat for other side.
   5. Install footbrace to fit the paddler’s legs.
